Nephrostomy/Biliary Drainage |
|
- Nephro-Cath Nephrostomy Drainage Catheters
- Chole-Cath Biliary Drainage Catheters
|
Nephrostomy/Biliary Drainage |
Features |
Benefits |
- Biliary Catheter with Visible RO Marker
- Radiopaque marker positioned at most proximal drainage hole is designed to facilitate accurate catheter placement.
- Ease of Insertion
- Reinforced tip to help prevent catheter from buckling during insertion
- Enhanced surface lubricity of UreSil Tru-Slide Plus™ hydrophilic coating facilitates catheter advancement and tracking
|
- Patient Comfort
- Ureflex Soft catheter material is designed to provide enhanced patient comfort
- Patency
- Exceptional catheter material features inherent column strength and superior memory for faster kink recovery
- Thin wall design, large skived drainage holes along with large bore hub provides excellent flow rates
- Patented locking mechanism is leak resistant and provides secure fixation of the pigtail
- Smooth, lubricious surface of the catheter’s inner wall can help reduce encrustation and maintain patency
|
NEPHRO-CATH™ Nephrostomy Drainage Catheters |
|
- Biliary catheter with RO Marker to facilitate accurate placement
- Ureflex®-Soft material for enhanced patient comfort
- Kink resistant
- Large bore hub
- Leak resistant locking mechanism
|

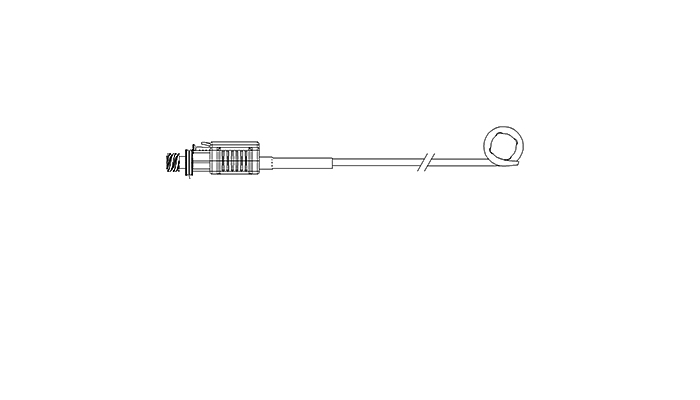

NEPHRO-CATH Nephrostomy Drainage Catheter with locking pigtail |
Hydrophilic-coated Ureflex-Soft |
Hydrophilic-coated |
Non-coated |
Size/Length* |
NCL2-0835HB |
NCL2-0835H |
NCL2-0835 |
8F / 28 cm |
NCL2-1035HB |
NCL2-1035H |
NCL2-1035 |
10F / 28 cm |
NCL2-1235HB |
NCL2-1235H |
NCL2-1235 |
12F / 27 cm |
NCL2-1435HB |
NCL2-1435H |
NCL2-1435 |
14F / 28 cm |
NCL2-0850HB |
|
|
8F / 41 cm |
NCL2-1050HB |
|
|
10F / 41 cm |
NCL2-1250HB |
|
|
12F / 40 cm |
NCL2-1450HB |
|
|
14F / 40 cm |
NEPHRO-CATH Nephrostomy Drainage Catheter with “P” tip (non-locking)
|
NCP-0835HB |
|
|
8F / 29 cm |
NCP-1035HB |
|
|
10F / 29 cm |
NCP-1235HB |
|
|
12F / 29 cm |
|
| |
Catheter Kits |
|
NEPHRO-CATH Nephrostomy Drainage Catheter Kit CHOLE-CATH Biliary Drainage with RO Marker Catheter Kit 5 units per box. Includes:
- Hydrophilic-Coated Ureflex-Soft Drainage Catheter with locking pigtail (CHOLE-CATH with RO Marker)
- Metal cannula
- Flexible cannula
- Septum cap
- POSI-STICK® Introducer Set with Platinum Tip (coaxial 4F & 6F dilator set with cannula, 21 GA Needle with echogenic tip)
- .018" Nitinol Guidewire with Platinum Tip
- .038" Guidewire
- 8F Dilator
- 10F Dilator**
**included in 10F kit only.
|
Catheter Type |
Order No. |
Size/Length* |
Nephrostomy |
NCL2-0835HB-K |
8F / 28 cm |
Nephrostomy |
NCL2-1035HB-K |
10F / 28 cm |
Biliary |
CCL2-0850HB-K |
8F / 41 cm |
Biliary |
CCL2-1050HB-K |
10F / 41 cm |
|
Percutaneous Biliary Drainage |
|
Includes catheter, metal cannula, flexible cannula and septum cap. 5 units per box.
|

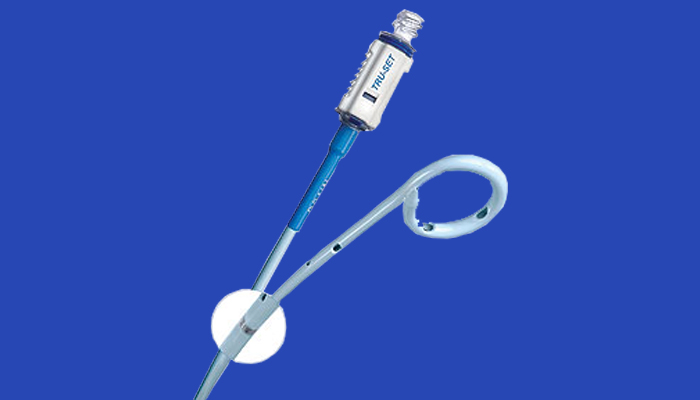

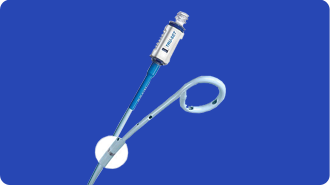

CHOLE-CATH Biliary Drainage Catheter with locking pigtail |
|
Hydrophilic-coated Ureflex-Soft with RO Marker |
Hydrophilic-coated |
Size/Length* |
CCL2-0850HB |
CCL2-0850H |
8F / 41 cm |
CCL2-1050HB |
CCL2-1050H |
10F / 41 cm |
CCL2-1250HB |
CCL2-1250H |
12F / 40 cm |
CCL2-1450HB |
CCL2-1450H |
14F / 40 cm |
CCL2-1650HB |
|
16F / 40 cm |
|
CHOLE-CATH Billiary Drainage Catheter with locking pigtail and additional holes extending along the shaft |
|
|
|
Hydrophilic-coated Ureflex-Soft |
Size/Length* |
CCL2-0850HBX |
8F /41 cm |
CCL2-1050HBX |
10F / 41 cm |
|

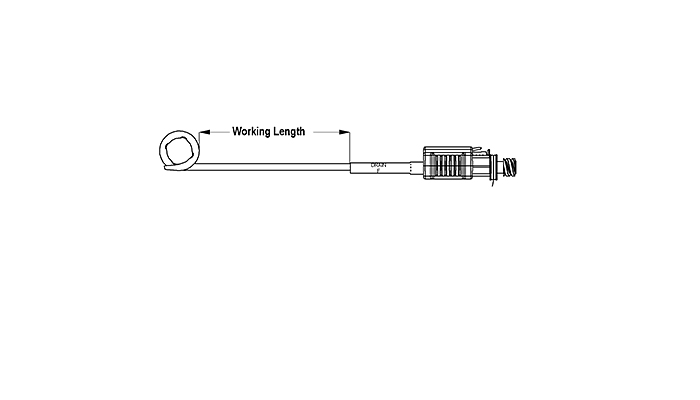

* Size/Length = French O.D. / Working Length. |
