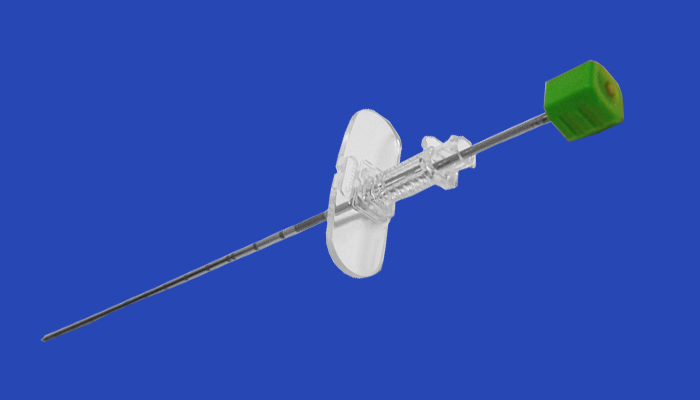

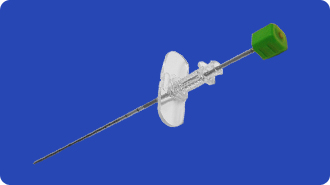

| MRI Coaxial Puncture Needle - One for all |
|
The MRI coaxial puncture needles are multi-purpose cannulae and can be used for initial punctures, as sheaths to guide wires, and as punctures heaths for both the SOMATEX® MRI Biopsy Handy and the standard version Biopsy Handy. The novel material, special alloy, and particularly sharp trocar tip allow for optimal visibility in the magnetic resonance images, at maximum stability, and minimum puncture trauma.
|
MRI Coaxial Puncture Needle |
|
|
| Features and Benefits |
- Initial puncture
- Coaxial cannula for biopsy instruments
- Guide needle for catheter and guide wires
- Injection and drainage cannula
|
|
| Article no. |
Diameter |
Gauge |
Length |
| 601400 |
1,20 mm |
18 G |
100 mm |
| 601405 |
1,20 mm |
18 G |
150 mm |
| 601408 |
1,60 mm |
16 G |
45 mm |
| 601410 |
1,60 mm |
16 G |
95 mm |
| 601412 | 1,60 mm | 16 G | 145 mm |
| 601418 | 2,00 mm | 15 G | 43 mm |
| 601420 | 2,00 mm | 15 G | 93 mm |
| 601422 | 2,00 mm | 15 G | 143 mm |
| 601428 | 2,40 mm | 13 G | 41 mm |
| 601430 | 2,40 mm | 13 G | 91 mm |
| 601432 | 2,40 mm | 13 G | 141 mm |
|
