| POSI-STICK® Introducer |
|
Introducer Sets
- Provides for easy, accurate, non-traumatic over-the-guidewire catheter placement.
- Features a 21 GA introducer needle with locking trocar, platinum-tipped .018" Nitinol guidewire, coaxial 4F-6F dilator introducer set
with locking ring and platinum RO marker, and .038"(or .035") guidewire with floppy tip and "J" tip.
One-Step ™ Introducer Set
- Features a 5F flexible dilator with trocar and 100cm x 0.38" guidewire for quick and easy access for catheter placement.
|
POSI STICK |
| POSI-STICK: PS2-38, PS2-35 |
|

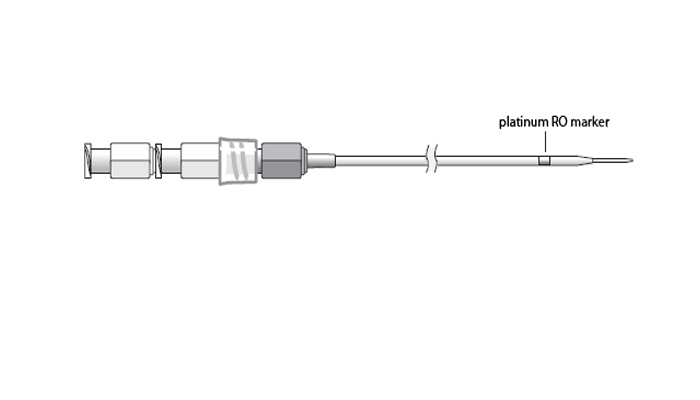

"POSI-STICK" Introducer Set: Coaxial 4F locking dilator & 6F shealth with platinum RO marker and stiffening cannula
|

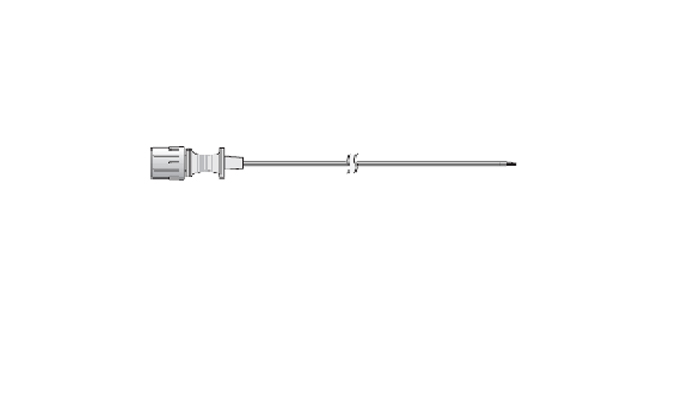

21 GA Trocar-style diagnostic needle (locking) |

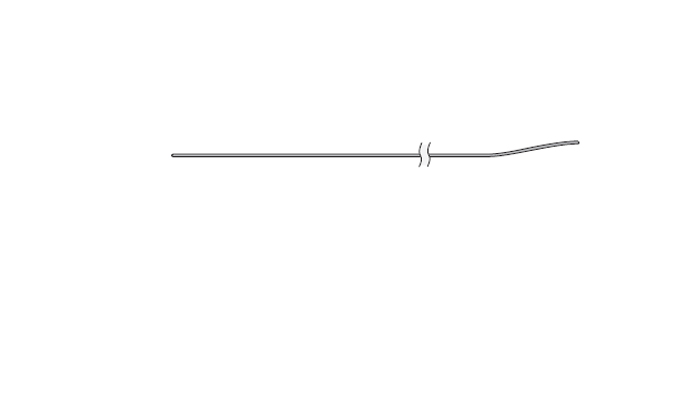

.018" Nitinol Guidewire with platinum RO floppy tip - 70 cm length |

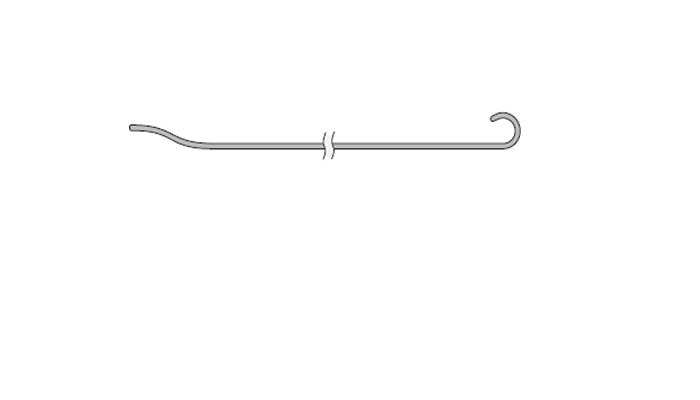

.035" or .038" Guidewire floppy tip & 3mm "J" tip - 150cm length |
|
|
| One-Step: PS2-1S |
|
5 Fr Dilator with locking trocar
|
.038" Guidewire with floppy tip & 3mm "J" tip - 100cm length |
|
| Order No. |
21 GA Diagnostic Needle |
"POSI-STICK" Introducer Set |
.018" Nitinol Guidewire 70 cm l. |
.038" Guidewire 150 cm l. |
035" Guidewire 150 cm l. |
5 Fr Dilator with locking trocar |
.038" Guidewire 100 cm l. |
Units Per Box |
|
PS2-38 |
. |
. |
. |
. |
|
|
|
10 |
|
PS2-35 |
. |
. |
. |
|
. |
|
|
10 |
|
PS2-00 |
. |
. |
|
|
|
|
|
5 |
|
PS2-18* |
|
|
. |
|
|
|
|
5 |
|
PS2-1S |
|
|
|
|
|
. |
. |
5 |
|
| * Replacement .018"(.46mm) Guidewire for PS2-35 & PS2-38 |
|

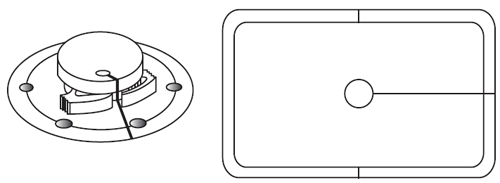

| UreSil® Tru-Fix ™ Catheter Fixation System |
|

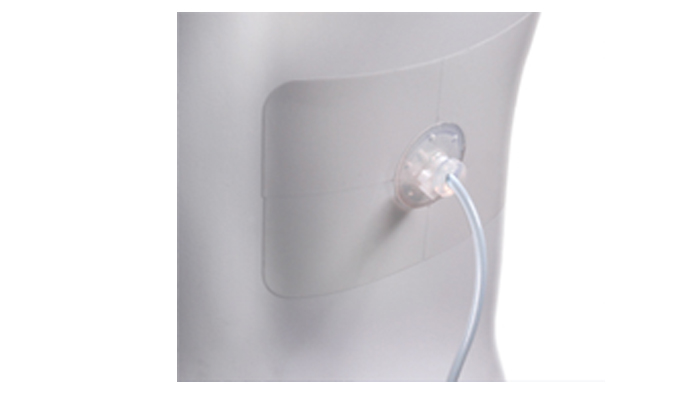

UreSil® Tru-Fix ™ Catheter Fixation System

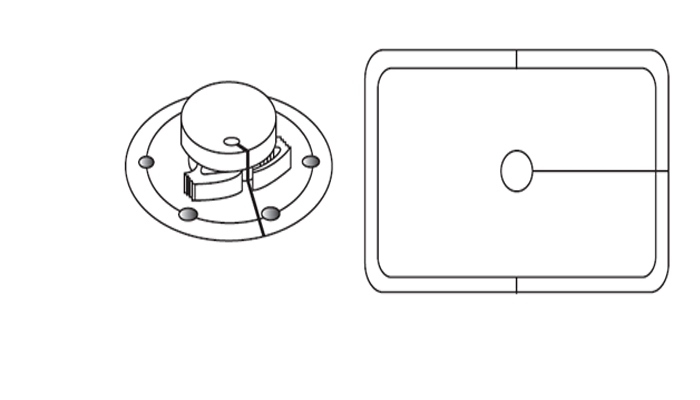

- The system incorporates a silicone disk, locking collar (nylon) and transparent adhesive patch
- The inherent friction of the silicone disk along with the polyurethane material in the catheter secures the catheter without occluding the lumen
- Transparent tape allows the caregiver the ability to monitor the skin condition
- The dressing can be easily changed without disturbing the wound site or dislodging the catheter
- Universal design that can be used on any brand of catheter
|
TRU FIX |
| Features |
Benefits |
- Fixation Design:
- Adjustable nylon locking ring to secure catheter in place
- Transparent silicone fixation device and adhesive patch
- Six distinct Fr. sizes (6 Fr. – 16 Fr.) to ensure proper fit on all brands of catheters
- Suture holes to further secure the disk in place
|
- Device is designed to secure the drainage catheter in place without crimping or kinking the catheter shaft by applying an equal 360º pressure with the locking ring
- The inherent friction of the silicone disk along with the polyurethane material in the catheter secures the catheter without occluding the lumen
- The transparent dressing can be easily changed without disturbing the wound site or dislodging the catheter
- Transparent fixation device and adhesive patch to allow visual observation of skin condition
- Replacement adhesive patches sold separately
|
|
|
|
| Size |
Units/Box |
Catalog Number |
|
6F |
5 |
TFK-06 |
|
8F |
5 |
TFK-08 |
|
10F |
5 |
TFK-10 |
|
12F |
5 |
TFK-12 |
|
14F |
5 |
TFK-14 |
|
16F |
5 |
TFK-16 |
|
Replacement Adhesive Patch |
20 |
TFD-R |
|
